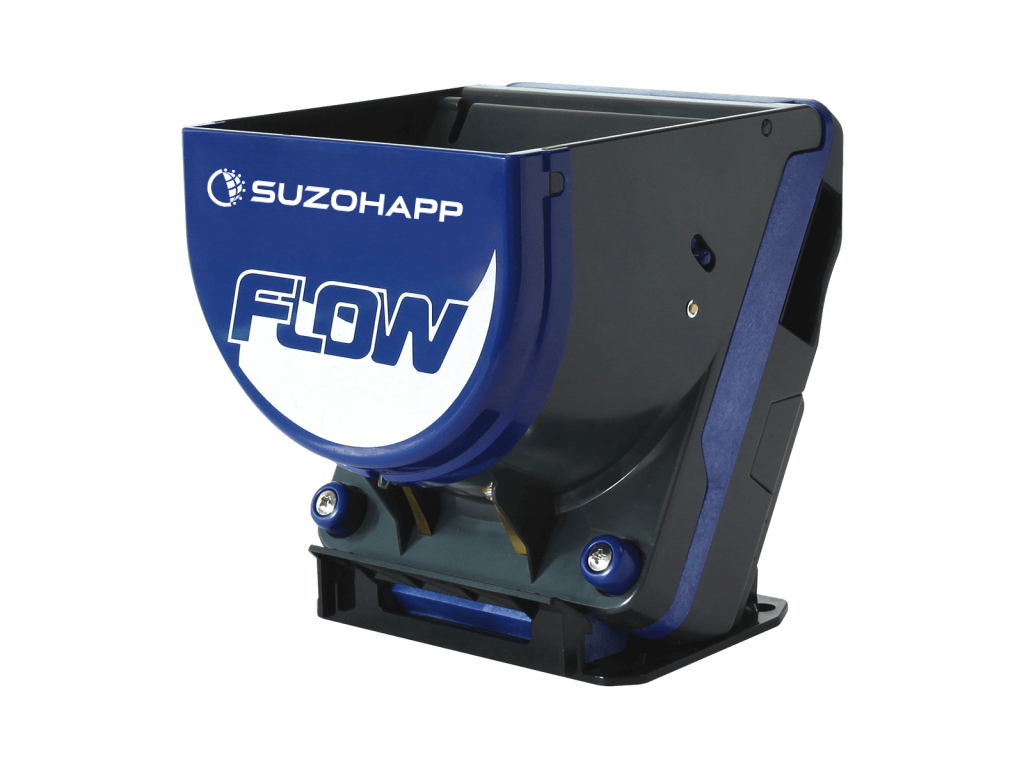

The Flow Hopper is a through-hole hopper suitable for various uses in gaming, vending, parking and change machines. The innovative electronics and high-resistance plastic materials ensure durability over time. Available in two versions: standard parallel and ccTalk.

Payout area

High payout speed of about 7 coins per second

Security clip

Low level sensor and anti-jam feature





3 different capacity coin bowls

Medium Cup

Intermediate Cup

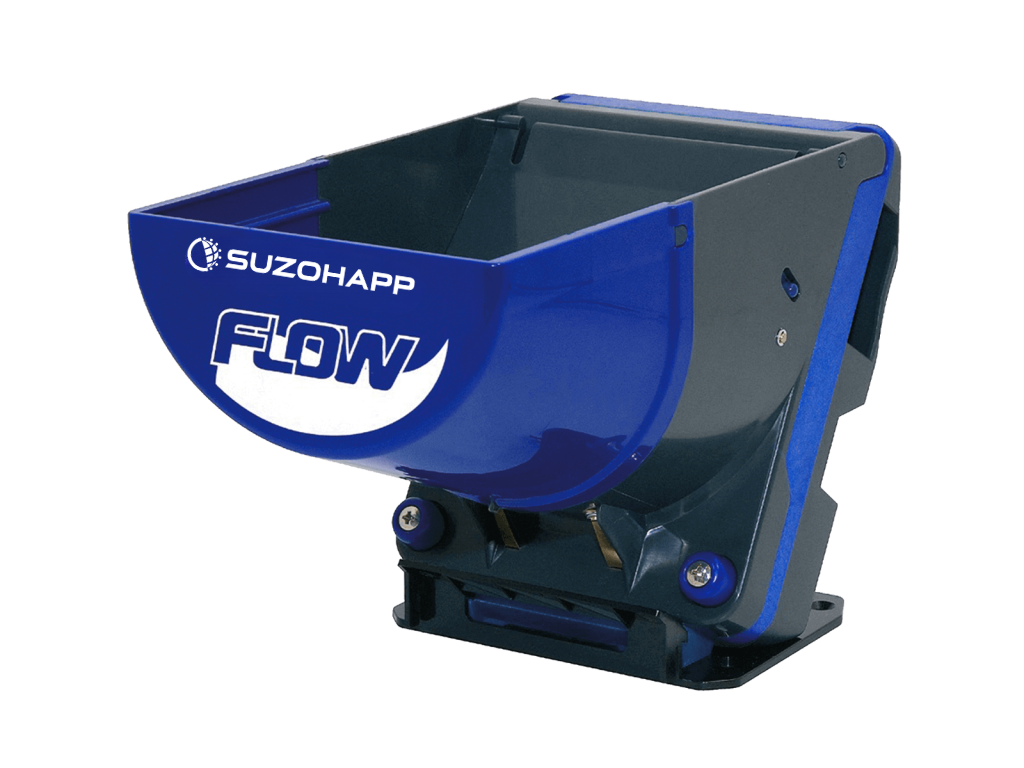

Large Cup





Features

  • Compatible with other hoppers already on the market
  • High payout speed of about 7 coins per second
  • Available with three different coin bowls: medium, intermediate, large
  • Reliable through-hole coin disk design -- no external wires run for level sensors
  • Integrated fall tube for simple dual hopper cabinet construction
  • ccTalk version available in encrypted and non-encrypted mode
  • Parallel interface and 10-pin connector
  • 12-24V power supply
  • Low level sensor and anti-jam feature

Technical Specifications

Dimensions (L x H x W) 127 x 155 x 154 mm (with medium coin bowl)

127 x 155 x 189 mm (with intermediate coin bowl)

127 x 155 x 228 mm (with large coin bowl)

Weight 757 g
Power supply 12 – 24 Vdc (min. 11 – max 26)
Current consumption 30 mA in stand by

2.2 A (typical); 5 A (maximum) at motor start-up

0.5 A @ 12 Volt (typical); 0.6 A @ 24 Volt (typical); 0.9 A (maximum) during dispensing

Operating temperature 0°C – 50°C – Relative humidity: 10% – 75%
Coins accepted 16 – 32 mm – thickness 1.6 – 3.2 mm
Payout speed 7 coins per second
Connection 10 pole connector (2×5 pitch 2.5mm) such as Molex series 8624 or similar

Coin Capacity

Currency (Bowl Size) €1 (with medium bowl) €1 (with intermediate bowl) €1 (with large bowl)
Capacity 375 546 747

Resources

18-CCtalk FlowHopper Manual

18-Parallel FlowHopper Manual
