High Performance / High Quality Components


  • Intel 4-Core i3-8100T, 8GB RAM, 128GB SSD (expandable to 64GB/256GB)
  • Dual Elo Touch 21.5” PCAP LCDs
  • CUSTOM MODUS 3 thermal roll printer w/ cutter, anti-jam technology
  • Choice of Bill Validators:
    • JCM UBA PRO (500 note cashbox)
    • MEI SC Advance (SCNxx 600 note cashbox)
    • ITL NV200 Spectral (500 note cashbox)
  • Newland FM430 scanner
  • Optional RM5 HD Coin Acceptor
  • Optional Magtek MT-215 Insertion Card Reader


Other peripherals and customization options are all possible

Two different display options

The modularity of the SBT-1000 enables you to choose from two different display options. You can have it set up as a single-screen or dual screen version.

Security with Keyed-Different Access Levels

  • Printer paper door sensor
  • Note/coin unjamming door sensor
  • Cashbox door sensor
  • Additional cashbox security strap
  • Computer access door sensor
  • Soft power on/off keyed-switch
  • Service mode keyed-switch

Design and Production Quality

  • Welded seams
  • Quality harnessing
  • ISO 9001, UL-Certified production sites


  • RGB LEDs– 7 colors selectable through switches
  • Super-durable baked-on powder coatings
  • Custom colors/backlighted logo
  • Soft power up/down key switch
  • Software-accessible low paper sensor
  • Printer and peripheral power-saving features
  • Universal power supply, localized power cable
  • UL, CE, international EMC and safety certifications
  • GLI-20 certified cabinet, designed to pass GLI-33 with platform software

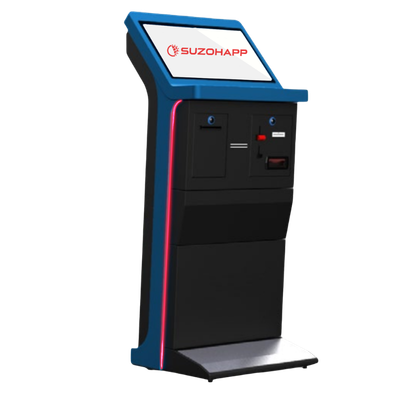

SBT-1000 Sports Betting Kiosk

Need more information? Contact Sales
