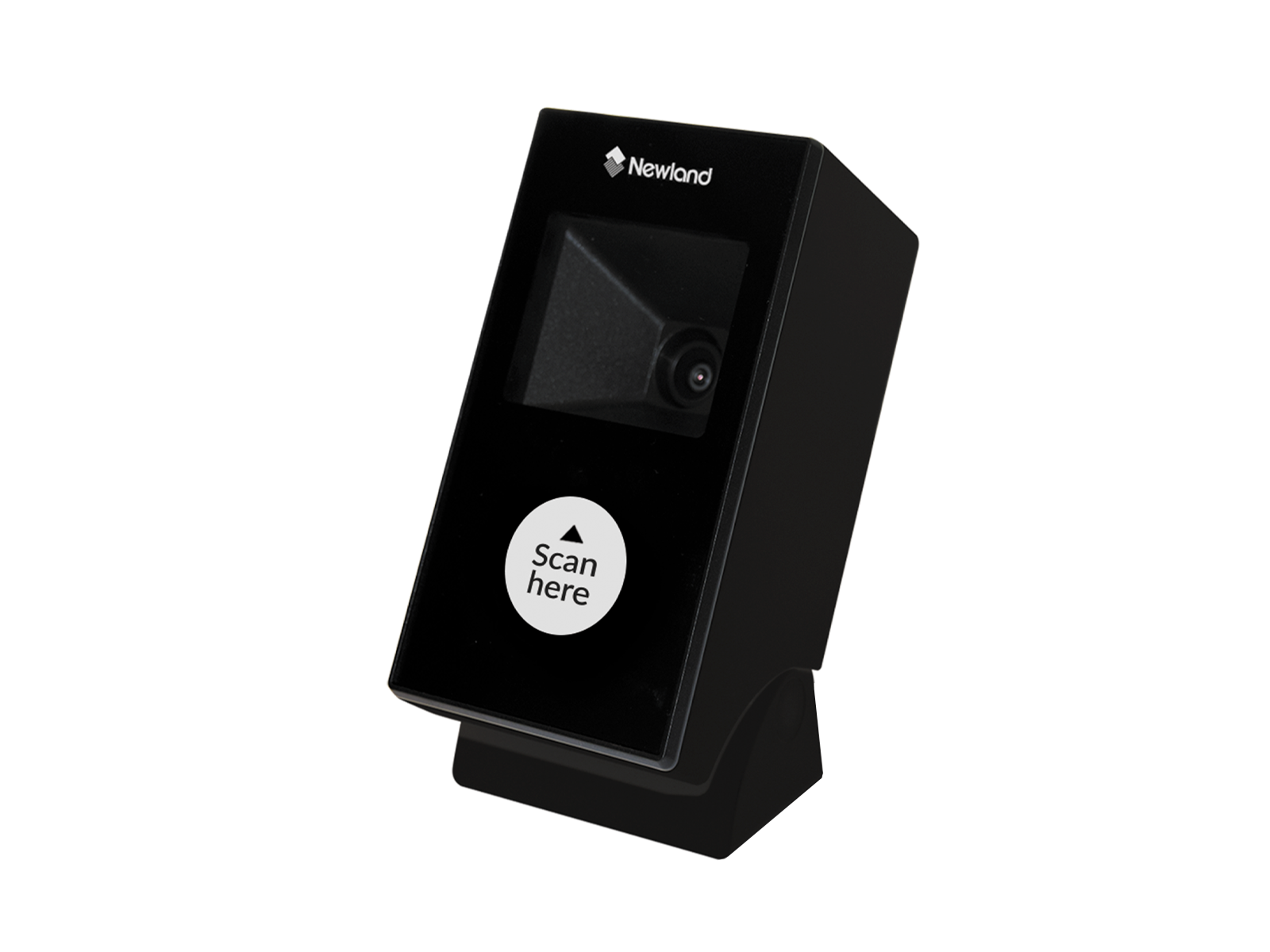

Newland FR21 Neon
Ideal for mobile payment, customer loyalty and ticket verification
The Newland FR21 Neon was built to create an optimal customer experience at the POS. It scans quickly and easily, even for the most inexperienced user, making it an ideal solution for applications like Mobile Payment, Customer Loyalty, Cashback and Ticket Verification. The “Scan here” circle is customizable.
Customer-facing scanning solution
First time, every time scanning of 1D and 2D barcodes from an LCD screen. The FR21 Neon was built to create an optimal customer experience at the POS. It scans quickly and easily, even for the most inexperienced user, making it an ideal solution for applications like Mobile Payment, Customer Loyalty and Ticket Verification.
Suits your POS perfectly
The FR21 Neon is designed as a modern and attractive device that you can fully adjust to your brand and POS. Its compact size makes it ideal for positioning on a small desk, a store shelf or at the counter, where space is crucial. For added flexibility, the scanning head can be tilted up to 35° to accommodate objects of various shapes and sizes.
Subtle, modest illumination
The FR21 Neon is equipped with a subtle white light that optimizes the scanning performance without drawing unnecessary attention when faced outwards. Additionally, the depth of field helps customers scan quickly without causing the device to light up unnecessarily.
Customize for your brand
It is easy and affordable to match the FR21 Neon to your brand. The fully flat front lends itself to simple cover designs and the round window underneath the scanner (diameter 2.8 cm) has LED lighting behind it, providing extra visibility for a company logo placed over it. This allows you to customize and change up the look of the device, even for small quantities.
1D
2D
CMOS
IP50
1.2m drop
USB
RS232
Technical Specifications
| Processor |
0390 Chip+MCU |
| Image Sensor | CMOS 640*480 |
| Illumination | White LED |
| Minimal Print Contrast | 25% |
| Scan Angle Roll | 360° |
| Scan Angle Pitch | ±30° |
| Scan Angle Skew | ±30° |
| Field of View Horizontal | 73° |
| Field of View Vertical | 56° |
| Scan Modes |
Sense Mode, Continuous Mode |
| Scan Rate |
60 frames per second |
| Data capture 1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. |
| Data capture 2D | PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code |
| Dimensions (mm) | 70.5(W)×60.2(D)×120.7(H)mm |
| Weight | 242g |
| Material |
ABS |
| Interfaces |
RS-232, USB |
| Notifications |
Beep |
| Input Voltage | 5VDC ± 5% |
| Current @ 5VDC Operating | 127.3mA(typical), 280.7mA(max.) |
| Power Supply Input | DC5V, 1.5A |
| Power Supply Output |
AC100~240V, 50~60Hz |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| Electrostatic Discharge (ESD) |
±12 kV (air discharge), ±6 kV (direct discharge) |
| Drop |
1.2m |
| Sealing |
IP50 |
| Certifications | FCC Part 15 Class B, CE EMC Class B |
